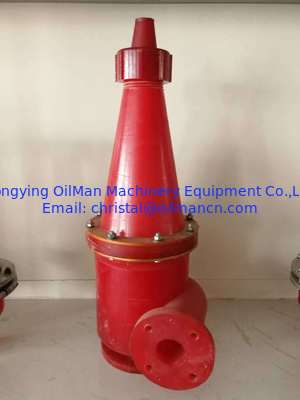

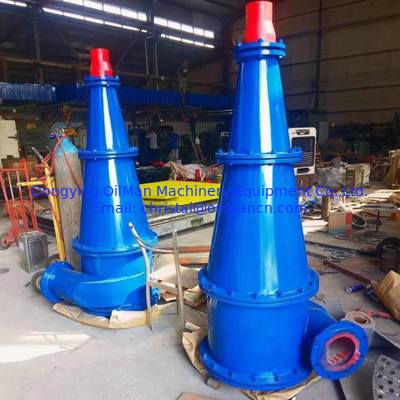

Hydro Cyclone Separator With Solid Liquid Cyclones Hydrocyclone For Sand Removal

Productdetails:

Plaats van herkomst: CHINA
Certificering: ISO
Modelnummer: FX -model

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal: 1 pc
Prijs: USD20-500/pc
Verpakking Details: Exporteer houten zaak
Levertijd: 7-30 werkdagen
Betalingscondities: L/C, T/T, Western Union, MoneyGram
Levering vermogen: 1000 pc's per maand
Beste prijs Contact

Gedetailleerde informatie
Productnaam: Hydro -cycloonafscheider met vaste vloeibare cyclonen Hydrocyclone voor zandverwijdering Trefwoorden: Hydrocycloon
Gebruik: Afscheiding van de mijnbouw Materiaal: Polyurethaan (PU) voering en stalen schaal
Capaciteit: 0.05 - 900 m3/h Diameter: 10 - 840 mm

Productomschrijving

High Efficiency Solid Control System Cyclone And Hydrocyclone For Desander And Desilter



 Descriptions of Hydrocyclone:

The hydrocyclone is a high-efficiency classification/separation device that uses centrifugal force to partition particles in liquid suspensions based on size, shape, and density. As a compact, low-maintenance alternative to screens and sedimentation tanks, it’s widely applied in mineral processing, industrial wastewater treatment, oil & gas, chemical/pulp & paper industries.



Hydrocyclone/ cyclone filter is mainly used for classification, separation, concentration, and desliming in the mineral mining industry. When the hydrocyclone is used as a classifier, it is mainly used to form a grinding and classification system with a mill; when it is used as a deslimer, it can be used for desliming in a gravity concentrator; when it is used as a concentrating and dewatering device, it can be used to concentrate ore dressing tailings and send them to fill underground mining tunnels. The hydro cyclone sand separator has no moving parts, a simple structure, a large capacity per unit volume, a small area, high classification efficiency (up to 80% ~ 90%), fine classification granularity, low cost, and low material consumption.

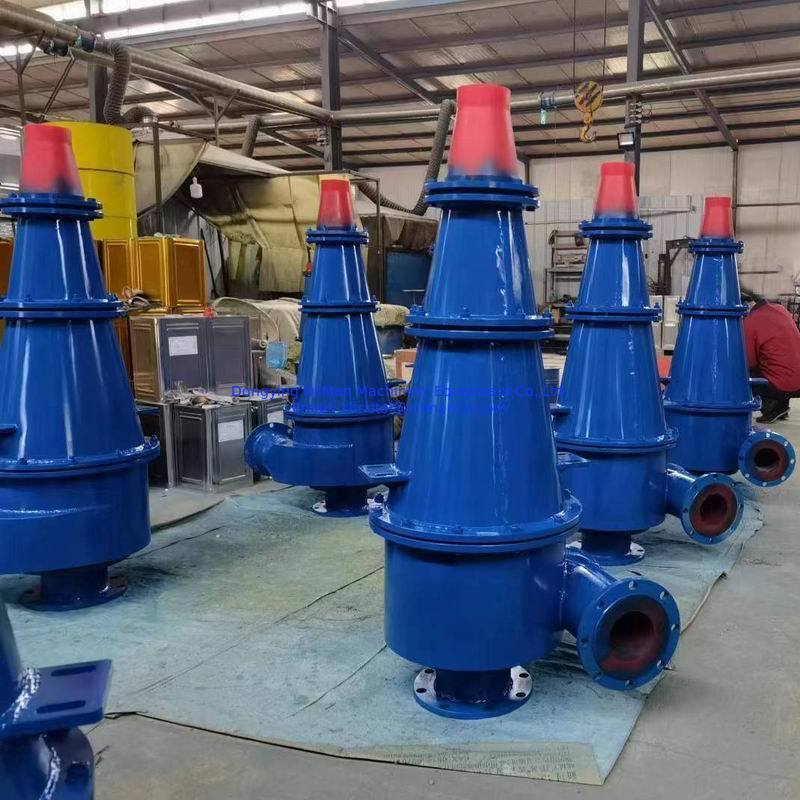

Hydro Cyclone Separator With Solid Liquid Cyclones Hydrocyclone For Sand Removal 0

Hydrocyclone Working Principle

The hydrocyclone pump (or height difference) rotates the slurry into the cylinder along the Tangent Direction with a certain pressure (generally 0.5 ~ 2.5 kg/cm) and flow rate (about 5 ~ 12 m / s), and then the slurry rotates along the cylinder wall at a very fast speed to create centrifugal force. Under the action of Centrifugal Force and gravity, the coarse and heavy ore particles are thrown out. The suspension enters the hydraulic cyclone at relatively high speed from the feed tube in a tangential direction and rotates from top to bottom. This motion is commonly referred to as external or descending swirl motion. The solid particles in the external swirl flow are separated from the suspension by Centrifugal Force and move down the wall of the device to discharge from the bottom outlet.

Hydrocyclone Technical Parameter:



Model Diameter (mm) Angle of Cone (° ) Diameter of Overflow Outlet (mm)

Diameter of Spigot

(mm)

 Max Feeding Size (mm) Inlet Pressure (MPa) Capacity (m3/h) Separation Particle Size (um) Overall Dimension Unit 〜Weight (Kg)
Length (mm) Width (mm) Hight (mm)
FX840 840 20 280〜380 80〜220 18 0.04〜0.2 500〜900 74〜350 1700 1500 3700 1621
FX750 750 45 180〜290 85〜175 16 0.04〜0.2 400〜500 74〜300 1210 910 2680 1400
FX710 710 45 175〜270 80〜165 16 0.04 〜0.2 350〜450 74〜250 1255 1185 1040 1250
FX660 660 20 165〜250 80〜155 16 0.03〜0.2 250〜350 74〜220 1140 1000 2920 800
FX660   45 165〜250 80〜155 16 0.03〜0.2 250〜350 74〜220 1140 1000 2000 995
FX610 610 20 155〜230 75〜140 13 0.03〜0.2 200〜300 74〜220 875 950 2560 550
FX610   45 155〜230 75〜140 13 0.03〜0.2 200〜300 74〜220 875 950 1810 600
FX500 500 20 125~185 55〜115 10 0.03〜0.3 140〜220 74〜200 850 700 2050 380
15 74〜150 850 700 2380 540
45 74〜150 850 825 1630 430
FX350 350 20 80~120 30〜70 6 0.04〜0.3 60〜100 50〜150 775 620 1765 208
15 50〜120 775 620 1970 210
FX300 300 20 65~115 20〜50 5 0.04〜0.3 45 〜85 50〜150 498 485 1415 105
15 40 〜100 498 485 1642 169
FX250 250 2. 60~100 16〜45 3 0.06〜0.35 40 〜60 40〜100 410 380 1215 75
15 40〜100 410 380 1405 73
10 30〜100 410 380 1788 85
FX200 200 20 40〜65 16〜32 2 0.06〜0.35 25 〜40 40〜100 365 330 1030 45
15 30〜100 410 330 1083 54
10 30〜100 400 365 1490 60
FX150 150 20 30〜45 8〜22 1.5 0.06〜0.35 11 〜20 30 〜74 310 265 820 29
15 30〜74 310 265 878 30
10 30 〜74 310 265 1160 35
FX125 125 17 25〜40 8〜18 1 0.06〜0.35 8~15 20〜100 260 218 620 10.2
8 20 〜74 260 218 870 33
FX100 100 20 20〜40 8~18 1 0.06〜0.35 5~15 20 〜100 260 210 525 8,6
15 20〜100 268 215 720 13
8 20 〜100 365 150 1065 23
5 20〜100 365 150 1505 30
FX75 75 15 15~22 6〜12 0.6 0.1 〜0.4 2〜5 20〜74 240 230 420 2.2
5 5~40 240 230 778 6.5
FX50 50 15 11〜16 3〜8 0.3 0.1〜0.4 1〜2 10〜74 160 137 400 1.5
5 160 137 680 5.5
FX25 25 5 6〜10 3~7 0.2 0.1〜0.4 0.8〜1.2 4〜20 130 85 495 1.2
FX10 10 4 3〜4 2〜3 0.2 0.2〜0.4 0.1〜0.2 2〜10 30 30 195 2

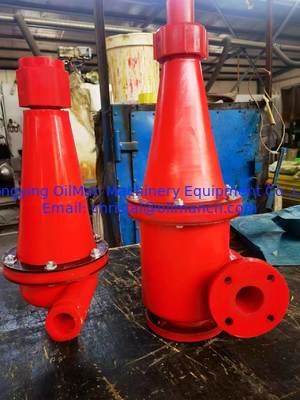

Hydro Cyclone Separator With Solid Liquid Cyclones Hydrocyclone For Sand Removal 1
